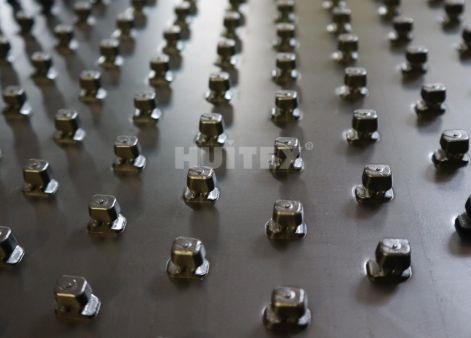

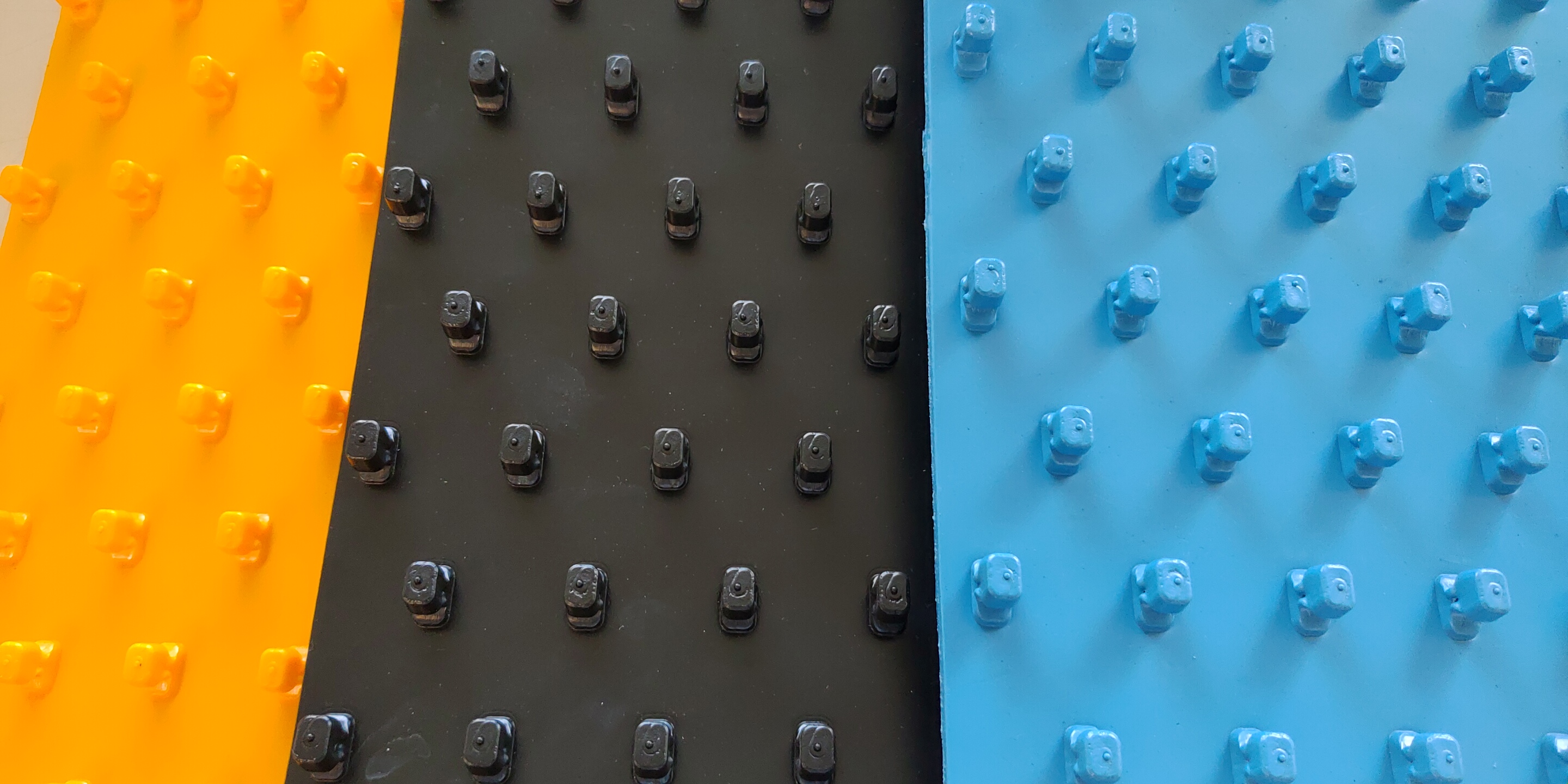

HUITEX® K-Liner is made of premium HDPE (High Density Polyethylene) with state-of-the-art anchor stud systems which are integrally and homogenously manufactured in s single operation. Combining all the advantages that HDPE liners have (flexible, easy-shaping, chemical resistance), it makes HUITEX® concrete protective liners the most suitable one to protect the concrete structure against corrosive attack by liquids or gases.
HUITEX® K-Liner is installed to all pre-cast concrete pipes and shafts, soffits to cover slabs, chambers and landings.
HUITEX® K-Liner is also incorporated in the in-situ cast structures. It has superior features including outstanding pull-off resistance, tensile properties, puncture resistance, and strong resistance against aggressive chemicals, UV, and environmental stress crack.
HUITEX® K-Liner is the best long-term solution and an economic way to extend the life of the concrete systems.
|
Properties |
Test Method |
H2E200 |
H2E250 |
H2E300 |
H2E400 |
H2E500 |
|
Density, g/cm3 |
ASTM D792 |
0.94 |
||||
|
Thickness, mm |
ASTM D5199 |
2.0 |
2.5 |
3.0 |
4.0 |
5.0 |
|
Tensile Properties Strength at Yield, Mpa Strength at Break, MPa Elongation at Yield,% Elongation at Break,% |
ASTM D6693 Type IV Dumbbell G.L.=33mm G.L.=50mm |
15 27 12 500 |
||||
|
Pull-out Strength, Ton/m2 |
|
70 |
||||
|
Carbon black Content,% |
ASTM D1603 |
2-3 |
||||
|
Carbon Black Dispersion |
ASTM D5596 |
Category 1 or 2 |
||||
|
Standard OIT, mins |
ASTM D8117 |
100 |
||||
|
ESCR(NCTL), hours |
ASTM D5397 |
500 |
||||
|
Water Absorption, % |
ASTM D570 |
0.05 |
||||
|
Width (Max.), m |
|
3.0 |
||||
|
Length, m |
|
70 |
70 |
70 |
60 |
50 |
The thickness of HUITEX K-Liner ranges from 2.0 mm to 5.0 mm (excl. knobs)
All values are nominal test results, except as minimum or maximum when specified.
