HUITEX Geocell is an innovative Geosynthetic products providing cost-effective solutions for ground stabilization, erosion control and earth retention.
HUITEX® Geocell made of virgin polyethylene strips, which use same formulation as HUITEX® Geomembrane, have high tensile and peel strength. With its flexible and lightweight cellular confinement system, HUITEX® Geocell provides the most suitable solution for soil stabilization, erosion control and earth protection.
Further, HUITEX® Geocell system also featuring:
- Reduces infill cost, onsite fill is fully accepted
- Eco-friendly, open-cell structure easily for vegetation
- 3D honeycomb confines and stabilizes cohesionless soils
- Be a protective layer, over the impermeable geomembrane
Benefit from excellent seam strength, delivery vertical load into cell and infill

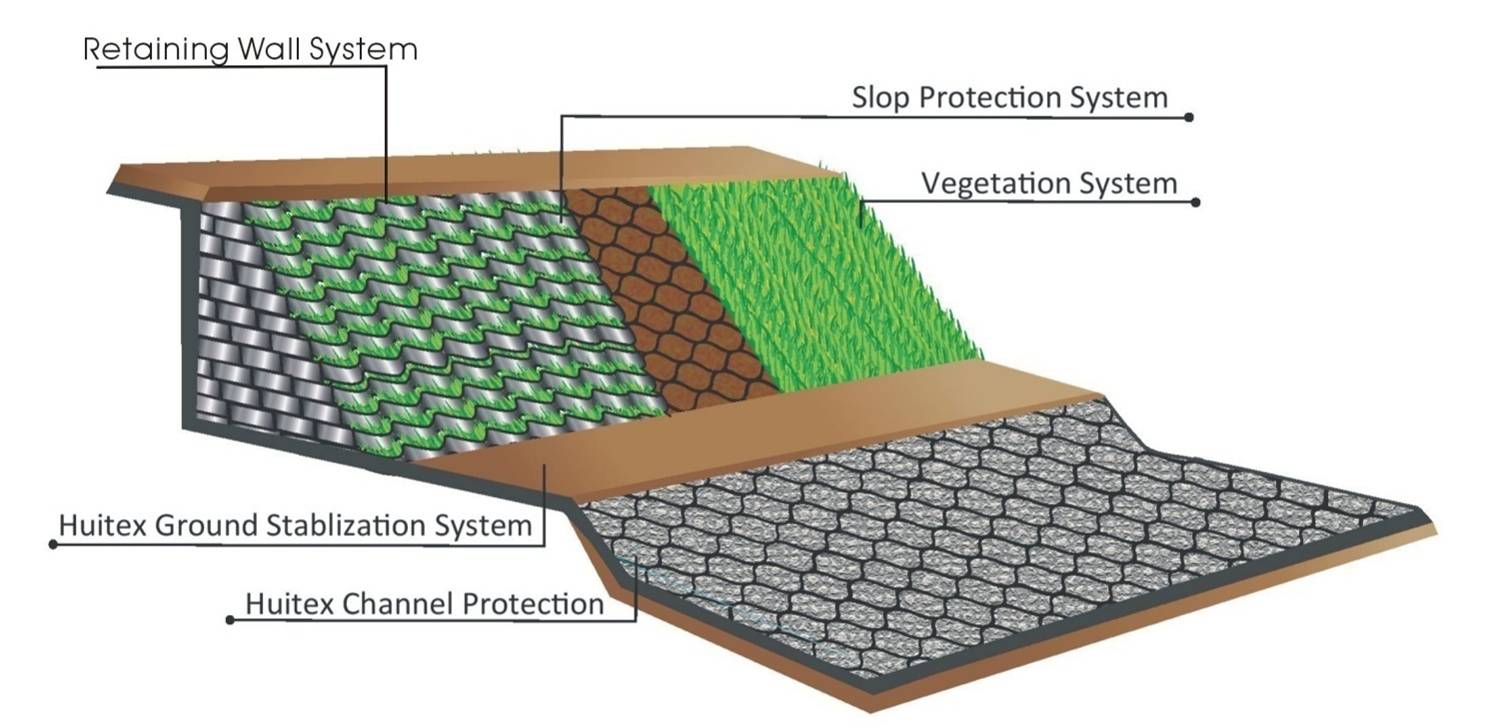

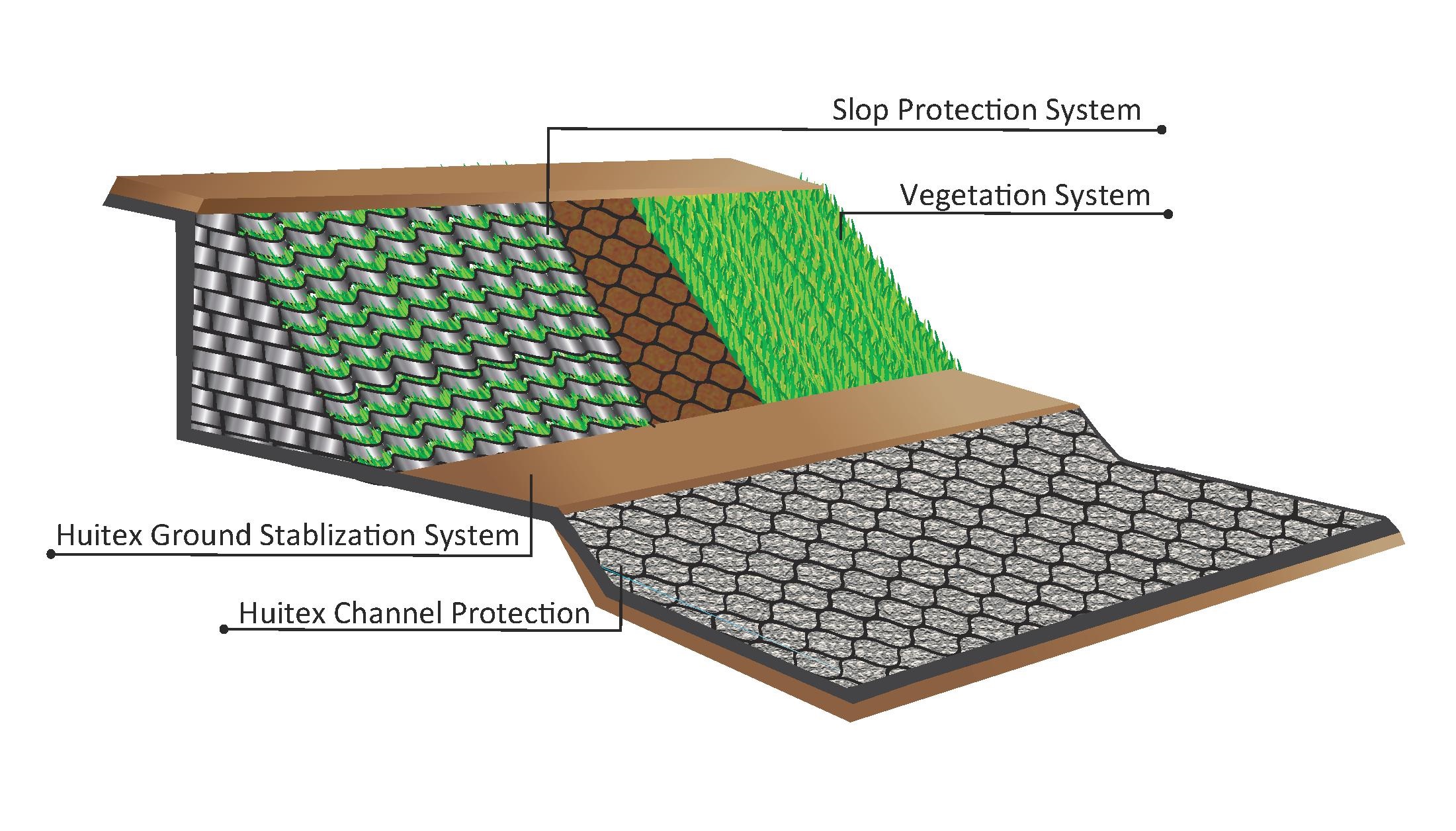

Specialized in:
- Slope protection
- Erosion control
- Channel protection
- Embankments
- Retaining wall
Material and Seam Properties
|
Properties |
Test Method |
Value |
||
|
Material |
|
High Density Polyethylene with density >0.94g/cm |
||
|
Carbon Black Content |
ASTM D1603 |
>1.50% |
||
|
Standard Color |
|
Black (standard); color(applicable) |
||
|
Surface treatment |
|
Smooth or textured (diamond sharp) |
||
|
Sheet Thickness |
ASTM D5199 |
1.25mm (smooth) or 1.5mm (embossed textured) |
||
|
Perforation |
Applicable |
Shape of capsule (7.5mm x 20mm) or ϕ10mm round type |
||
|
Seam Properties |
Cell Depth±3 |
Average Certified Cell Seam Strength |
||
|
Short-term seam peel strength |
50mm (2 in) |
>760 N |
||
|
75mm (3 in) |
>1060 N |
|||
|
100mm(4 in) |
>1420 N |
|||
|
150mm(6 in) |
>2130 N |
|||
|
200mm(8 in) |
>2840 N |
|||
|
Seam Hang Strength, Days |
COE GL-86-19 |
Per 100mm seam shall sustain 72.5kg weight for at least 7 days, undergoing the variances from room temperature to 53℃ on one hour cycle. |
||
Dimension & Packing
|
Type |
Welding distance |
Single Cell/expension size |
AREA PER SECTION |
|
|
WIDTH |
LENGTH |
|||
|
Model A |
330mm |
244mm |
203mm |
15.00 m2 |
|
Model B |
660mm |
488mm |
406mm |
30.00 m2 |
|
Model C |
355mm |
259mm |
224mm |
17.50 m2 |
|
Model D |
710mm |
510mm |
475mm |
36.50 m2 |
|
Model E |
446mm |
320mm |
287mm |
22.00 m2 |
This information is provided for reference purpose only and is not as a warranty or guarantee.
Huikwang Corporation (HKC) reserves the right to change the specifications contained herein without notice.
